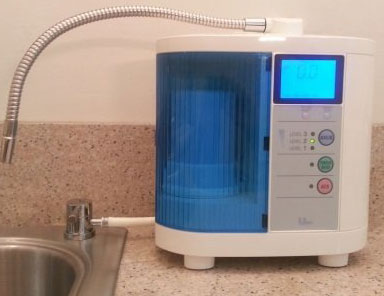

If you ever dreamed of having your Kangen Water machine on your counter but without the clutter of the hose connected to your kitchen faucet, your dream has finally came true. This
elegant Chrome designer faucet diverter valve
connects directly to your cold water line under your
sink, no clutter no mess. It is so small and
discrete and that's the way customers say they want
it. Although it is not shown the grey acid run off
hose will still be hanging in the sink. This is what
many customers have been hounding us for. Now we
have it. It comes complete with a kit for under sink
hook up. You will need to have a hole cut in your
sink to perform the installation. It comes with
complete installation instructions.

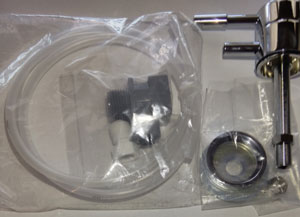

What comes in the box/envelope.

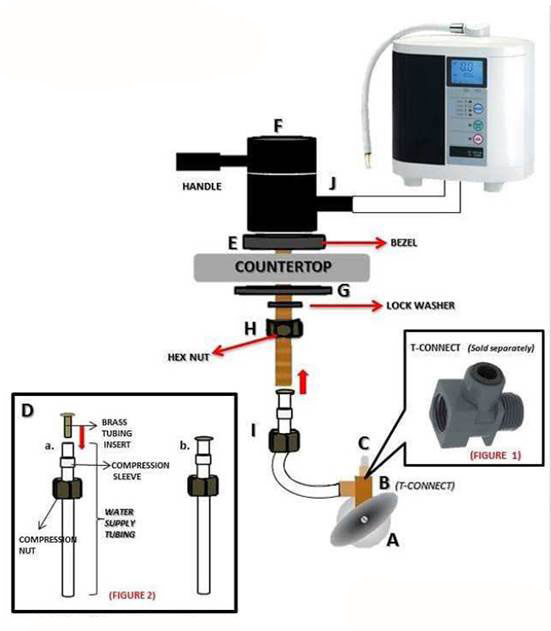

Designer Faucet Diverter Instructions
Turn off the cold water valve and disconnect the
cold water supply hose that is hooked up to that
Attach a T-Connect (fig. 1) to the valve
Attach the cold water supply to top of the
Prepare the water supply tubing by first slipping
the compression sleeve and compression nut towards
the tubing's end as shown in fig. 2, then attach the
brass tubing insert into the tubing's opening.
Slide bezel onto the stem on new faucet, with the
O-ring side facing down.
Insert new faucet into the hole on the counter top.
Slide the remaining large washer first, follow by
the lock washer onto the stem.
Tighten the hex nut until the faucet is in place.
Hold the washers as you tighten it, due that they
tend to slide off. You can unscrew and reposition
the handle as desired.
Get the assembled water supply tubing in step D.
Firmly push the free endof the tubing into the
bottom opening of the T-connect. Then, attach the
end with the compression nut, compression sleeve,
and brass tubing insert into the opening of the
faucet stem, as shown.
Slip the free end of the water supply hose onto the
faucet's outlet. Use a hose clamp to secure.
Installation in done. You may now turn the cold
water valve on and check for any leaks.
